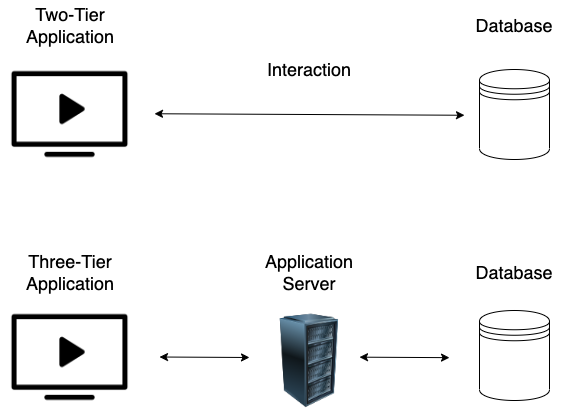

# Attacking Thick Client Applications ### Introduction * Thick client applications are the applications that are installed locally on our computers * Unlike thin client applications that run on a remote server and can be accessed through the web browser, these applications do not require internet access to run, and they perform better in processing power, memory, and storage capacity * Thick client applications are usually applications used in enterprise environments created to serve specific purposes * Such applications include project management systems, customer relationship management systems, inventory management tools, and other productivity software. * These applications are usually developed using Java, C++, .NET, or Microsoft Silverlight. * Thick client applications can be categorized into two-tier and three-tier architecture

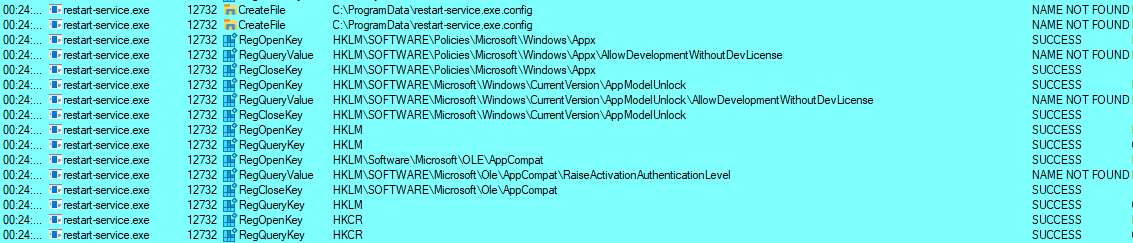

### Information Gathering * penetration testers have to identify the application architecture, the programming languages and frameworks that have been used, and understand how the application and the infrastructure work * The following tools will help us gather information. * CFF Explorer * Detect It Easy * Process Monitor * Strings ### Client Side attacks \- we can reverse-engineer and examine .NET and Java applications including EXE, DLL, JAR, CLASS, WAR, and other file formats. - Dynamic analysis should also be performed in this step, as thick client applications store sensitive information in the memory as well. - [Ghidra](https://www.ghidra-sre.org/) - [IDA](https://hex-rays.com/ida-pro/) - [OllyDbg](http://www.ollydbg.de/) - [Radare2](https://www.radare.org/r/index.html) - [dnSpy](https://github.com/dnSpy/dnSpy) - [x64dbg](https://x64dbg.com/) - [JADX](https://github.com/skylot/jadx) - [Frida](https://frida.re/) ### Network Side Attacks * Wireshark * tcpdump * TCPView * Burp Suite ### Server Side Attacks * Server-side attacks in thick client applications are similar to web application attacks, and penetration testers should pay attention to the most common ones including most of the OWASP Top Ten. ### Retrieving hardcoded Credentials from Thick-Client Applications * Scenario is you have a exe file * Using `ProcMon64` from [SysInternals](https://learn.microsoft.com/en-gb/sysinternals/downloads/procmon) and monitoring the process reveals that the executable indeed creates a temp file in `C:\Users\Matt\AppData\Local\Temp`.

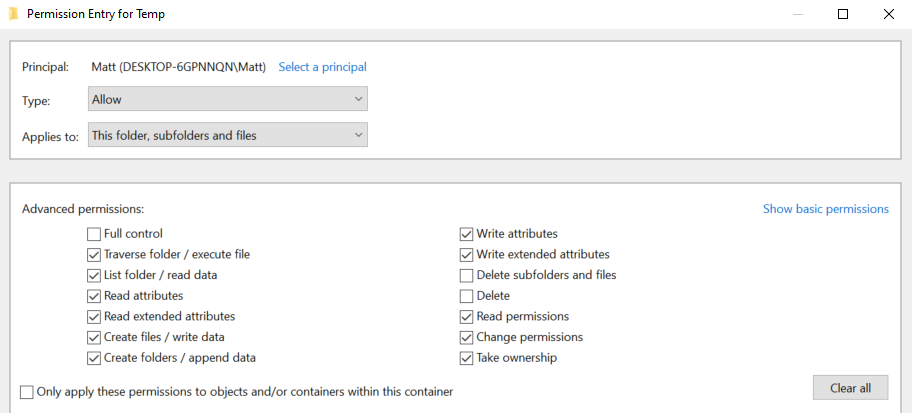

* In order to capture the files, it is required to change the permissions of the `Temp` folder to disallow file deletions. * To do this, * we right-click the folder * `C:\Users\Matt\AppData\Local\Temp` * and under `Properties` -> `Security` -> `Advanced` -> `cybervaca` -> `Disable inheritance` -> `Convert inherited permissions into explicit permissions on this object` -> `Edit` -> `Show advanced permissions`, * we deselect the `Delete subfolders and files`, and `Delete` checkboxes. * ```

``` * Finally, we click `OK` -> `Apply` -> `OK` -> `OK` on the open windows. * Once the folder permissions have been applied we simply run again the `Restart-OracleService.exe` and check the `temp` folder. * The file `6F39.bat` is created under the `C:\Users\cybervaca\AppData\Local\Temp\2`. * The names of the generated files are random every time the service is running. * ```` ```cmd-session ```` ```` dir C:\Users\cybervaca\AppData\Local\Temp\2 ``` ```cmd-session ...SNIP... 04/03/2023 02:09 PM 1,730,212 6F39.bat 04/03/2023 02:09 PM 0 6F39.tmp ``` * Listing the content of the `6F39` batch file reveals the following. ```batch @shift /0 @echo off if %username% == matt goto correcto if %username% == frankytech goto correcto if %username% == ev4si0n goto correcto goto error :correcto echo TVqQAAMAAAAEAAAA//8AALgAAAAAAAAAQAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA > c:\programdata\oracle.txt echo AAAAAAAAAAgAAAAA4fug4AtAnNIbgBTM0hVGhpcyBwcm9ncmFtIGNhbm5vdCBiZSBydW4g >> c:\programdata\oracle.txt echo AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA >> c:\programdata\oracle.txt echo $salida = $null; $fichero = (Get-Content C:\ProgramData\oracle.txt) ; foreach ($linea in $fichero) {$salida += $linea }; $salida = $salida.Replace(" ",""); [System.IO.File]::WriteAllBytes("c:\programdata\restart-service.exe", [System.Convert]::FromBase64String($salida)) > c:\programdata\monta.ps1 powershell.exe -exec bypass -file c:\programdata\monta.ps1 del c:\programdata\monta.ps1 del c:\programdata\oracle.txt c:\programdata\restart-service.exe del c:\programdata\restart-service.exe ``` * Inspecting the content of the file reveals that two files are being dropped by the batch file and being deleted before anyone can get access to the leftovers. * We can try to retrieve the content of the 2 files, by modifying the batch script and removing the deletion. ```batch @shift /0 @echo off echo TVqQAAMAAAAEAAAA//8AALgAAAAAAAAAQAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA > c:\programdata\oracle.txt echo AAAAAAAAAAgAAAAA4fug4AtAnNIbgBTM0hVGhpcyBwcm9ncmFtIGNhbm5vdCBiZSBydW4g >> c:\programdata\oracle.txt echo AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA >> c:\programdata\oracle.txt echo $salida = $null; $fichero = (Get-Content C:\ProgramData\oracle.txt) ; foreach ($linea in $fichero) {$salida += $linea }; $salida = $salida.Replace(" ",""); [System.IO.File]::WriteAllBytes("c:\programdata\restart-service.exe", [System.Convert]::FromBase64String($salida)) > c:\programdata\monta.ps1 ``` * After executing the batch script by double-clicking on it, we wait a few minutes to spot the `oracle.txt` file which contains another file full of base64 lines, and the script `monta.ps1` which contains the following content, under the directory `c:\programdata\`. * Listing the content of the file `monta.ps1` reveals the following code ```powershell-session cat C:\programdata\monta.ps1 ``` ```powershell-session $salida = $null; $fichero = (Get-Content C:\ProgramData\oracle.txt) ; foreach ($linea in $fichero) {$salida += $linea }; $salida = $salida.Replace(" ",""); [System.IO.File]::WriteAllBytes("c:\programdata\restart-service.exe", [System.Convert]::FromBase64String($salida)) ``` * This script simply reads the contents of the `oracle.txt` file and decodes it to the `restart-service.exe` executable. * Running this script gives us a final executable that we can further analyze. ```powershell-session ls C:\programdata\ ``` ```powershell-session Mode LastWriteTime Length Name -a---- 3/24/2023 1:01 PM 273 monta.ps1 -a---- 3/24/2023 1:01 PM 601066 oracle.txt -a---- 3/24/2023 1:17 PM 432273 restart-service.exe ``` * Now when executing `restart-service.exe` we are presented with the banner `Restart Oracle` created by `HelpDesk` back in 2010. * Inspecting the execution of the executable through `ProcMon64` shows that it is querying multiple things in the registry and does not show anything solid to go by. *

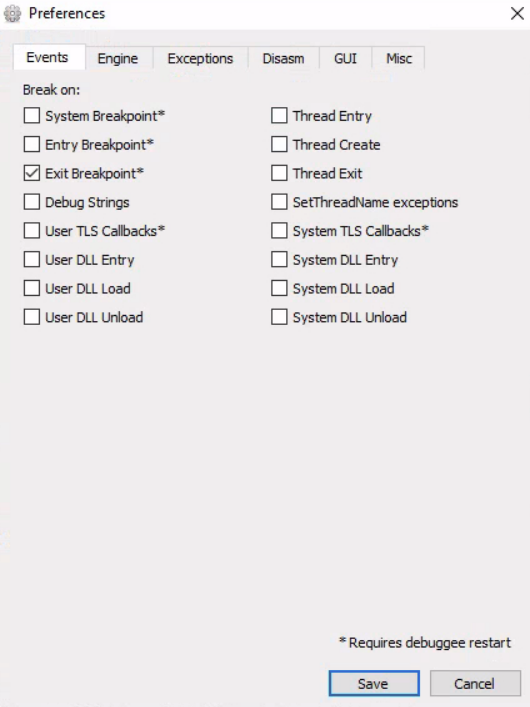

* start `x64dbg`, navigate to `Options` -> `Preferences`, and uncheck everything except `Exit Breakpoint`: *

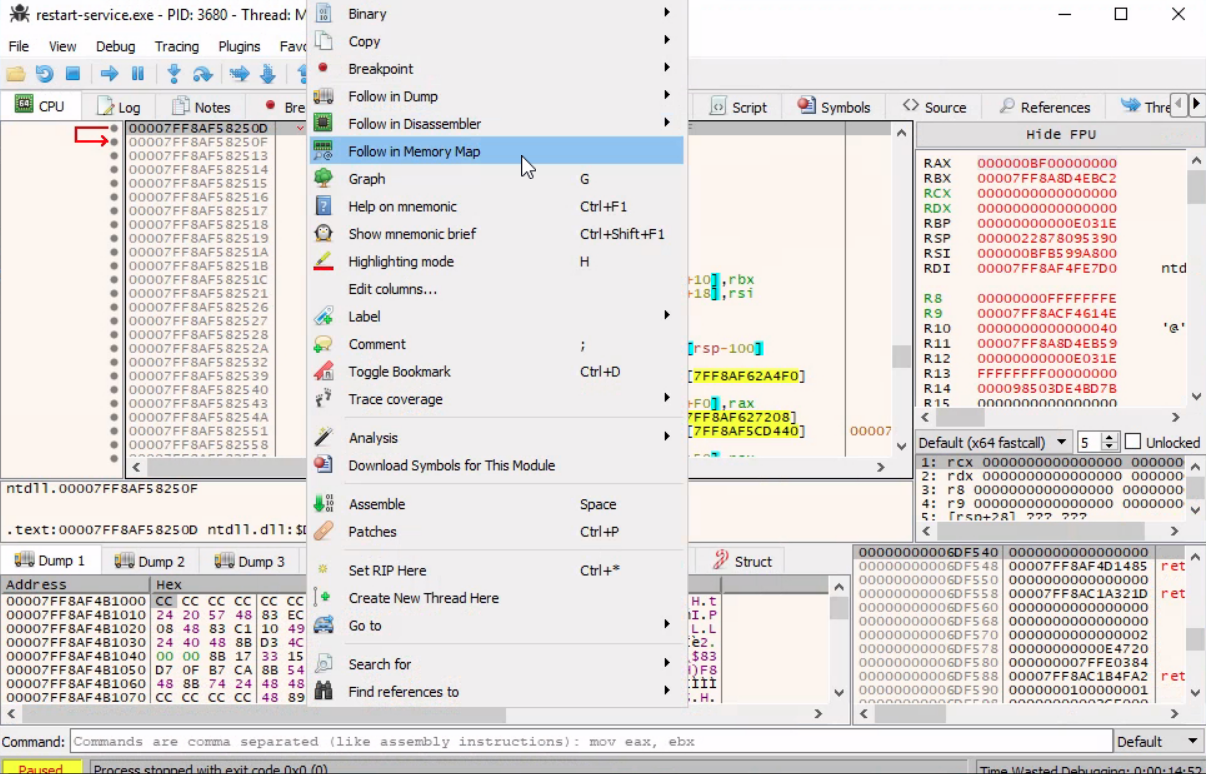

* By unchecking the other options, the debugging will start directly from the application's exit point, and we will avoid going through any `dll` files that are loaded before the app starts. * Then, we can select `file` -> `open` and select the `restart-service.exe` to import it and start the debugging. * Once imported, we right click inside the `CPU` view and `Follow in Memory Map`: *

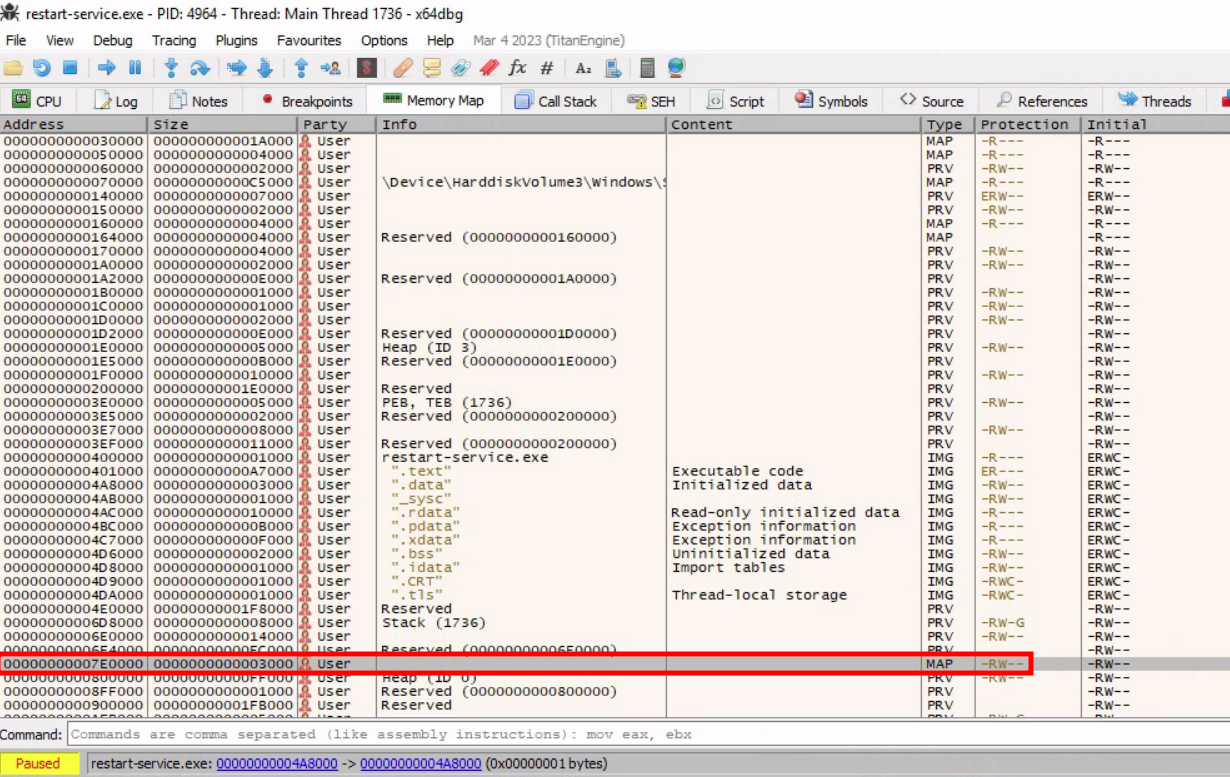

* Checking the memory maps at this stage of the execution, of particular interest is the map with a size of `0000000000003000` with a type of `MAP` and protection set to `-RW--`. *

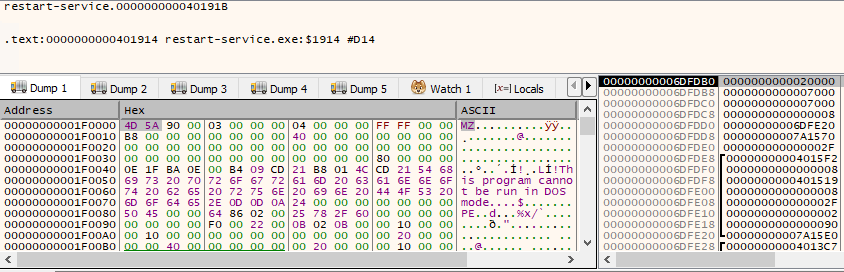

* Memory-mapped files allow applications to access large files without having to read or write the entire file into memory at once. Instead, the file is mapped to a region of memory that the application can read and write as if it were a regular buffer in memory. * This could be a place to potentially look for hardcoded credentials. * If we double-click on it, we will see the magic bytes `MZ` in the `ASCII` column that indicates that the file is a [DOS MZ executable](https://en.wikipedia.org/wiki/DOS_MZ_executable). *

* return to the Memory Map pane, then export the newly discovered mapped item from memory to a dump file by right-clicking on the address and selecting `Dump Memory to File`. * Running `strings` on the exported file reveals some interesting information. ```` ```powershell-session C:\TOOLS\Strings\strings64.exe .\restart-service_00000000001E0000.bin ``` ```powershell-session "#M z\V ).NETFramework,Version=v4.0,Profile=Client FrameworkDisplayName .NET Framework 4 Client Profile ``` * Reading the output reveals that the dump contains a `.NET` executable. * We can use `De4Dot` to reverse `.NET` executables back to the source code by dragging the `restart-service_00000000001E0000.bin` onto the `de4dot` executable. . ```cmd-session de4dot v3.1.41592.3405 Detected Unknown Obfuscator (C:\Users\cybervaca\Desktop\restart-service_00000000001E0000.bin) Cleaning C:\Users\cybervaca\Desktop\restart-service_00000000001E0000.bin Renaming all obfuscated symbols Saving C:\Users\cybervaca\Desktop\restart-service_00000000001E0000-cleaned.bin Press any key to exit... ``` * we can read the source code of the exported application by dragging and dropping it onto the `DnSpy` executable.
