> For the complete documentation index, see [llms.txt](https://docs.wehost.co.in/llms.txt). Markdown versions of documentation pages are available by appending `.md` to page URLs; this page is available as [Markdown](https://docs.wehost.co.in/cybersecurity/ntlm-authentication.md). # NTLM Authentication **Hash Protocol Comparison** | **Hash/Protocol** | **Cryptographic technique** | **Mutual Authentication** | **Message Type** | **Trusted Third Party** | | ----------------- | ------------------------------------------------ | ------------------------- | ------------------------------- | ----------------------------------------------- | | `NTLM` | Symmetric Cryptography | No | Random number | Domain Controller | | `NTLMv1` | Symmetric Cryptography | No | MD4 hash, random number | Domain Controller | | `NTLMv2` | Symmetric key cryptography | No | MD4 hash, random number | Domain Controller | | `Kerberos` | Symmetric Cryptography & asymmetric cryptography | Yes | Encrypted ticket using DES, MD5 | Domain Controller/Key Distribution Center (KDC) | ### LM * `LAN Manager` (LM or LANMAN) hashes are the oldest password storage mechanism used by the Windows operating system. * If in use, they are stored in the SAM database on a Windows host and the NTDS.DIT database on a Domain Controller. * Due to significant security weaknesses in the Hash Functions|hashing algorithm used for LM hashes, it has been turned off by default since Windows Vista/Server 2008. * However, it is still common to encounter, especially in large environments where older systems are still used. * Passwords using LM are limited to a maximum of `14` characters * Passwords are not case sensitive and are converted to uppercase before generating the hashed value, limiting the keyspace to a total of 69 characters making it relatively easy to crack these hashes using a tool such as Hashcat. ### NTHash (NTLM) * `NT LAN Manager` (NTLM) hashes are used on modern Windows systems. * It is a challenge-response authentication protocol and uses three messages to authenticate: a client first sends a `NEGOTIATE_MESSAGE` to the server, whose response is a `CHALLENGE_MESSAGE` to verify the client's identity. * Lastly, the client responds with an `AUTHENTICATE_MESSAGE` * These hashes are stored locally in the SAM database or the NTDS.DIT database file on a Domain Controller * The protocol has two hashed password values to choose from to perform authentication: the LM hash (as discussed above) and the NT hash, which is the MD4 hash of the little-endian UTF-16 value of the password. * The algorithm can be visualized as: `MD4(UTF-16-LE(password))`. **NTLM Authentication Request**

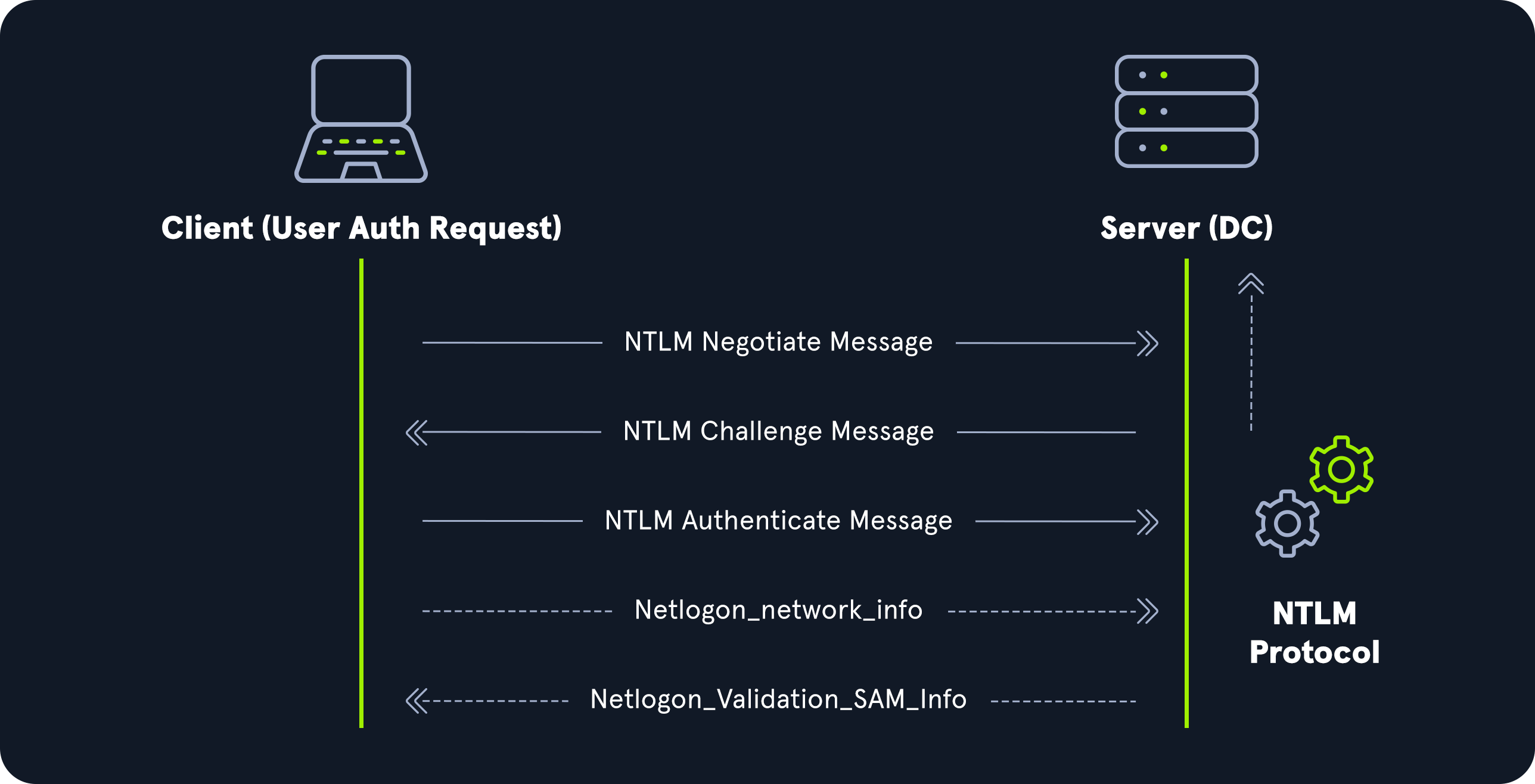

```shell-session Rachel:500:aad3c435b514a4eeaad3b935b51304fe:e46b9e548fa0d122de7f59fb6d48eaa2::: ``` * `Rachel` is the username * `500` is the Relative Identifier (RID). 500 is the known RID for the `administrator` account * `aad3c435b514a4eeaad3b935b51304fe` is the LM hash and, if LM hashes are disabled on the system, can not be used for anything * `e46b9e548fa0d122de7f59fb6d48eaa2` is the NT hash. This hash can either be cracked offline to reveal the cleartext value (depending on the length/strength of the password) or used for a pass-the-hash attack. Below is an example of a successful pass-the-hash attack using the CrackMapExec tool: ``` crackmapexec smb 172.16.1.0/24 -u Administrator -d . -H 30B3783CE2ABF1AF70F77D0660CF3453 ``` ### NTLMv1 (Net-NTLMv1) * The NTLM protocol performs a challenge/response between a server and client using the NT hash. * NTLMv1 uses both the NT and the LM hash, which can make it easier to "crack" offline after capturing a hash using a tool such as [Responder](https://github.com/lgandx/Responder) or via an [NTLM relay attack](https://byt3bl33d3r.github.io/practical-guide-to-ntlm-relaying-in-2017-aka-getting-a-foothold-in-under-5-minutes.html) **V1 Challenge & Response Algorithm** ```shell-session C = 8-byte server challenge, random K1 | K2 | K3 = LM/NT-hash | 5-bytes-0 response = DES(K1,C) | DES(K2,C) | DES(K3,C) ``` **NTLMv1 Hash Example** ```shell-session u4-netntlm::kNS:338d08f8e26de93300000000000000000000000000000000:9526fb8c23a90751cdd619b6cea564742e1e4bf33006ba41:cb8086049ec4736c ``` ### NTLMv2 (Net-NTLMv2) * The NTLMv2 protocol was first introduced in Windows NT 4.0 SP4 and was created as a stronger alternative to NTLMv1. * It has been the default in Windows since Server 2000. * It is hardened against certain spoofing attacks that NTLMv1 is susceptible to. NTLMv2 sends two responses to the 8-byte challenge received by the server. * These responses contain a 16-byte HMAC-MD5 hash of the challenge, a randomly generated challenge from the client, and an HMAC-MD5 hash of the user's credentials. * A second response is sent, using a variable-length client challenge including the current time, an 8-byte random value, and the domain name. * The algorithm is as follows **V2 Challenge & Response Algorithm** \- NTLM Authentication ```shell-session SC = 8-byte server challenge, random CC = 8-byte client challenge, random CC* = (X, time, CC2, domain name) v2-Hash = HMAC-MD5(NT-Hash, user name, domain name) LMv2 = HMAC-MD5(v2-Hash, SC, CC) NTv2 = HMAC-MD5(v2-Hash, SC, CC*) response = LMv2 | CC | NTv2 | CC* ``` * An example of an NTLMv2 hash is: **NTLMv2 Hash Example** \- NTLM Authentication ```shell-session admin::N46iSNekpT:08ca45b7d7ea58ee:88dcbe4446168966a153a0064958dac6:5c7830315c7830310000000000000b45c67103d07d7b95acd12ffa11230e0000000052920b85f78d013c31cdb3b92f5d765c783030 ``` ### Domain Cached Credentials (MSCache2) * Microsoft developed the MS Cache v1 and v2 algorithm (also known as Domain Cached Credentials (DCC) to solve the potential issue of a domain-joined host being unable to communicate with a domain controller (i.e., due to a network outage or other technical issue) and, hence, NTLM/Kerberos authentication not working to access the host in question. * Hosts save the last `ten` hashes for any domain users that successfully log into the machine in the `HKEY_LOCAL_MACHINE\SECURITY\Cache` registry key * These hashes cannot be used in pass-the-hash attacks. * Furthermore, the hash is very slow to crack with a tool such as Hashcat, even when using an extremely powerful GPU cracking rig, so attempts to crack these hashes typically need to be extremely targeted or rely on a very weak password in use * These hashes can be obtained by an attacker or pentester after gaining local admin access to a host and have the following format: `$DCC2$10240#bjones#e4e938d12fe5974dc42a90120bd9c90f`.
