# Packet Flow in RouterOS

While i was studying ip tables i wanted to dive deeper into how exatly routers work since iptables could techinically act as a firewall and a router

<figure><img src="https://556493038-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FxMLCiQqJJztvsDM2LNoE%2Fuploads%2Fgit-blob-12f26c9cf9adc6da61a096bdbee0f1b932ada955%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

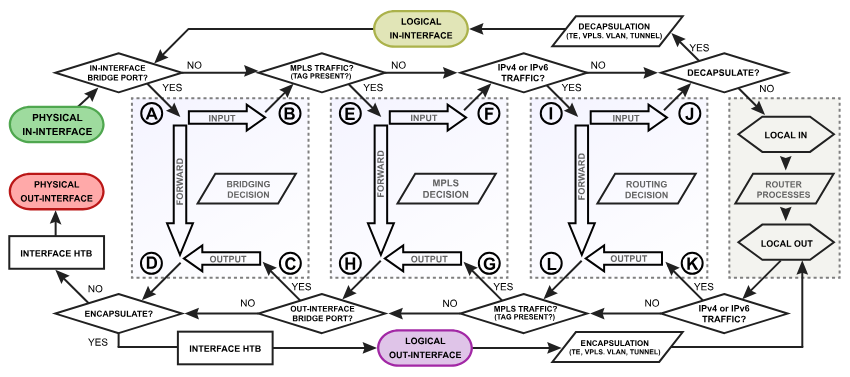

* There are 4 boxes in the center of the diagram:
  * Bridging
  * Routing
  * Mpls decisions
  * local router processes.

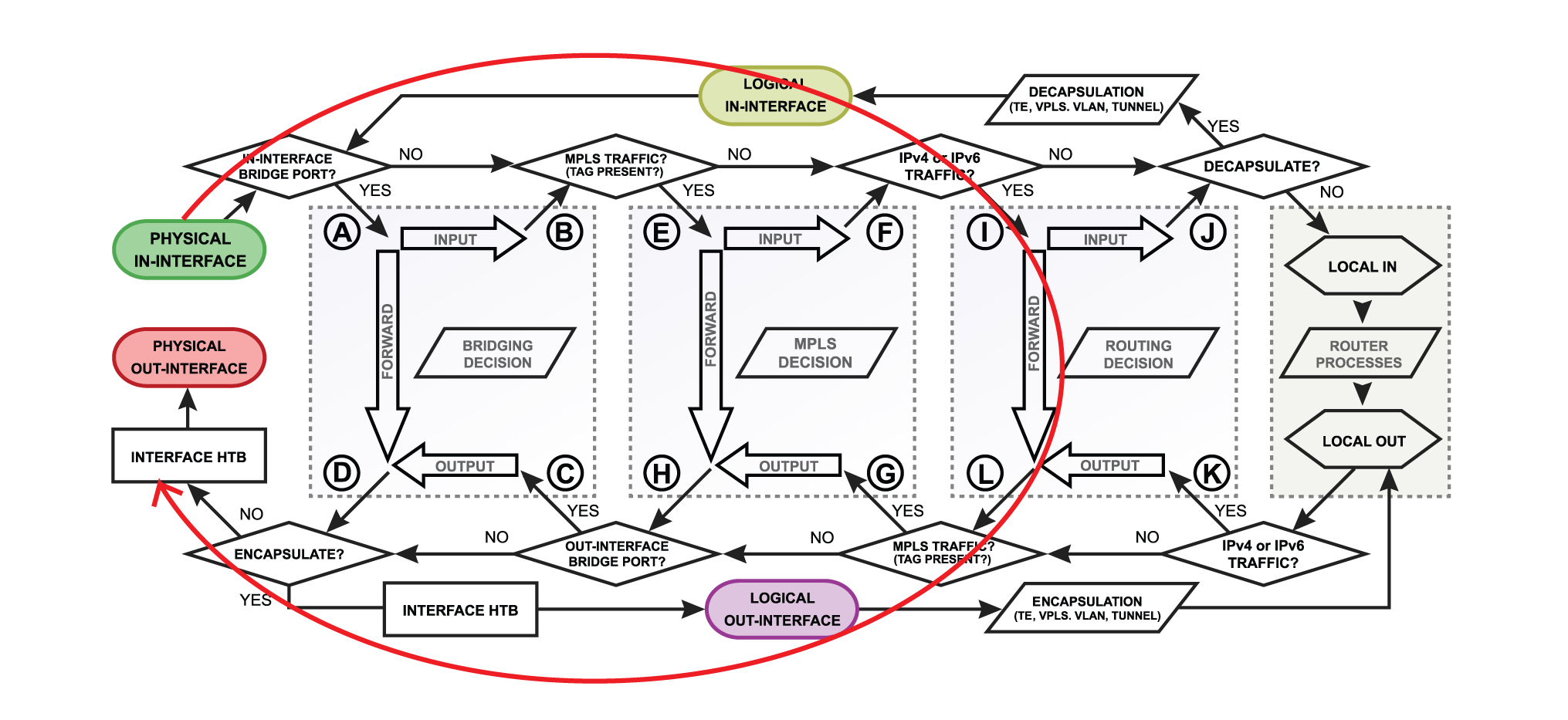

* if the packet needs to be routed over the router, a packet will flow as illustrated in the image below
*

```
<figure><img src="https://556493038-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FxMLCiQqJJztvsDM2LNoE%2Fuploads%2Fgit-blob-b694b194b044b4f6819ad7421c3e7f77ece258d6%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>
```

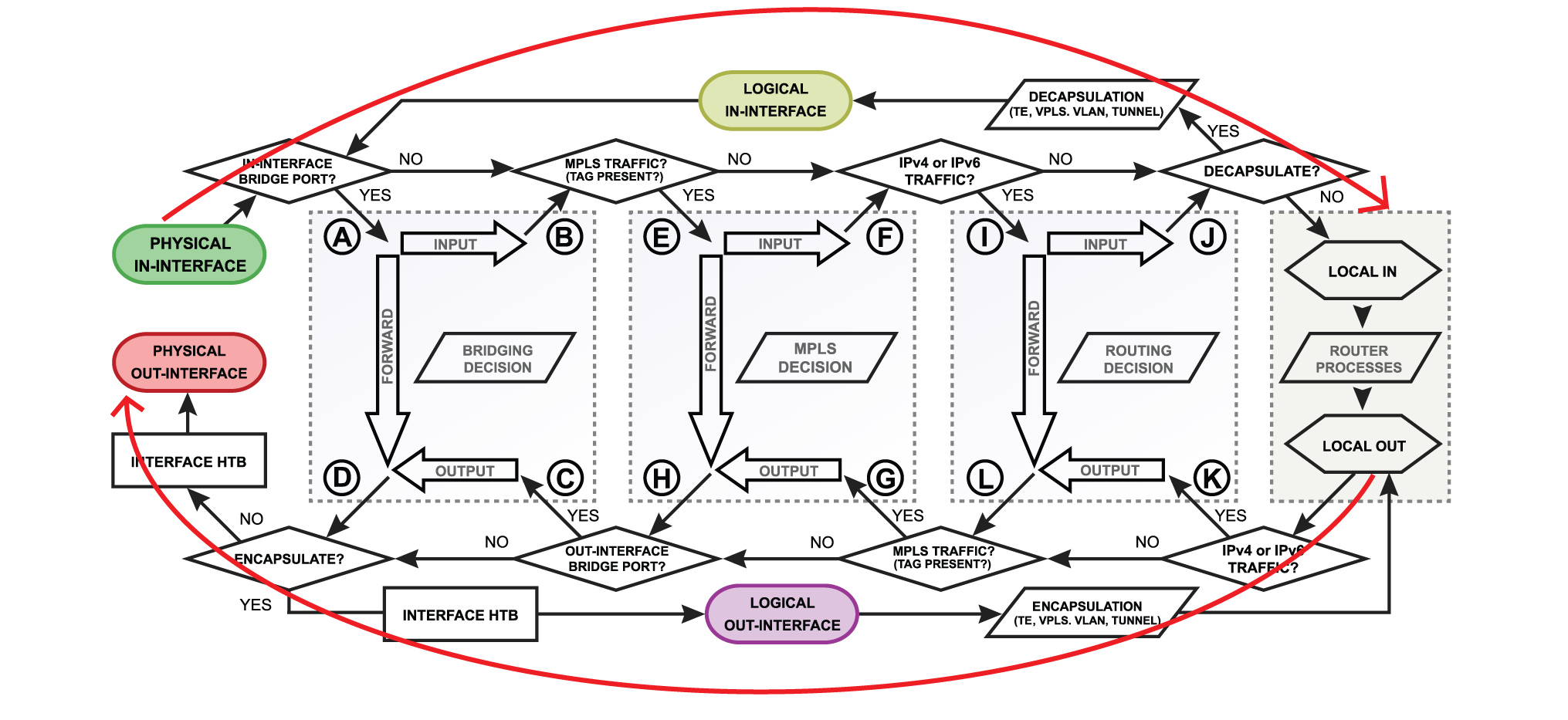

* if the packet's destination is a router
* &#x20;the in-interface receives ICMP (ping) packet, its destination is the router itself, so the packet will go for *local-in* processing
* After the packet is processed ICMP (ping) reply is generated inside the router *(local-out* processing) and will be sent out over the out-interface
*

```
<figure><img src="https://556493038-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FxMLCiQqJJztvsDM2LNoE%2Fuploads%2Fgit-blob-722e9ecc42359626499a9c964e28dbe2bc1972f7%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>
```

* explanation of each box before we go further with examples:
  * **physical in-interface** - the starting point of the packet received by the router;
  * **logical in-interface** - the starting point of the decapsulated packet (from tunnels, IPsec, etc);
  * **local in** - the last point of a packet destined to router itself;
  * **interface HTB (Hierarchical Token Bucket)** - interface queue;
  * **physical out-interface** - last point of the packet before it is actually sent out;
  * **logical out-interface** - last point of the packet before encapsulation (to tunnels, IPsec, etc);
  * **local out** - the starting point of a packet generated by the router;

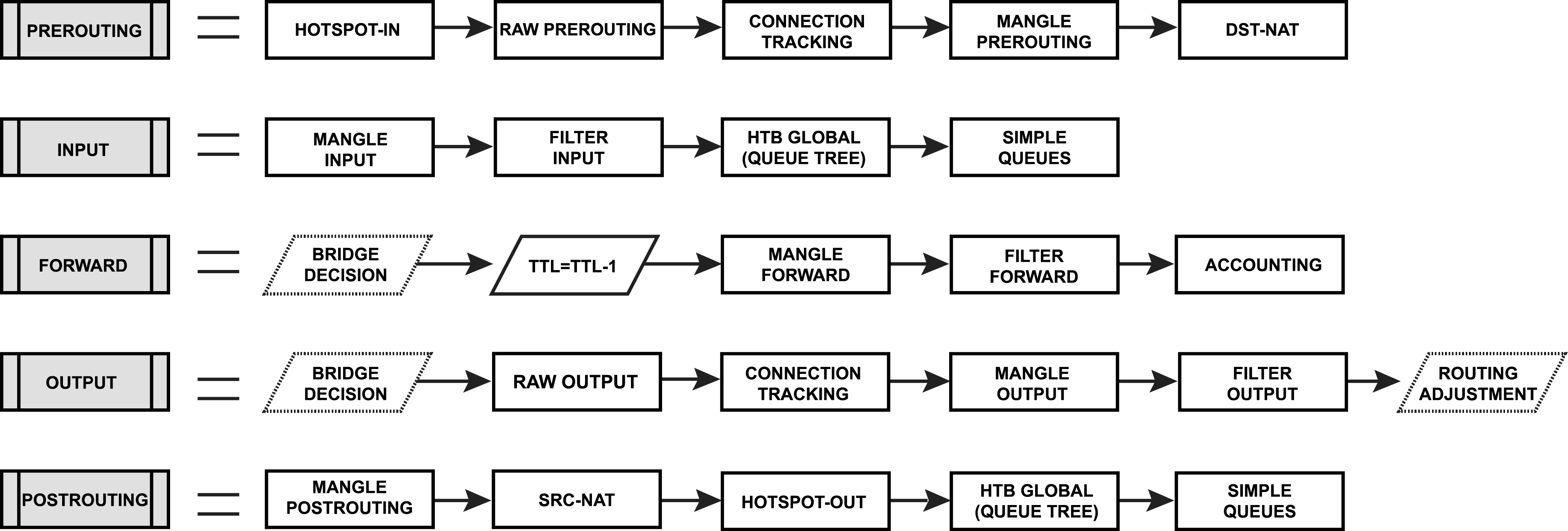

### Chains

* The **PREROUTING** chain:
  * Rules in this chain apply to packets as they just arrive on the network interface. This chain is present in the *nat*, *mangle* and *raw* tables.
* The **INPUT** chain:
  * Rules in this chain apply to packets just before they’re given to a local process. This chain is present in the *mangle* and *filter* tables.
* The **OUTPUT** chain:
  * The rules here apply to packets just after they’ve been produced by a process. This chain is present in the *raw*, *mangle*, nat, and *filter* tables.
* The **FORWARD** chain:
  * The rules here apply to any packets that are routed through the current host. This chain is only present in the *mangle* and *filter* tables.
* The **POSTROUTING** chain:
  * The rules in this chain apply to packets as they just leave the network interface. This chain is present in the *nat* and *mangle* tables.

<figure><img src="https://556493038-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FxMLCiQqJJztvsDM2LNoE%2Fuploads%2Fgit-blob-5bb27d1f903a037ee108a7409ceba98ace8c0cf3%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

### Flow of Routed Packet

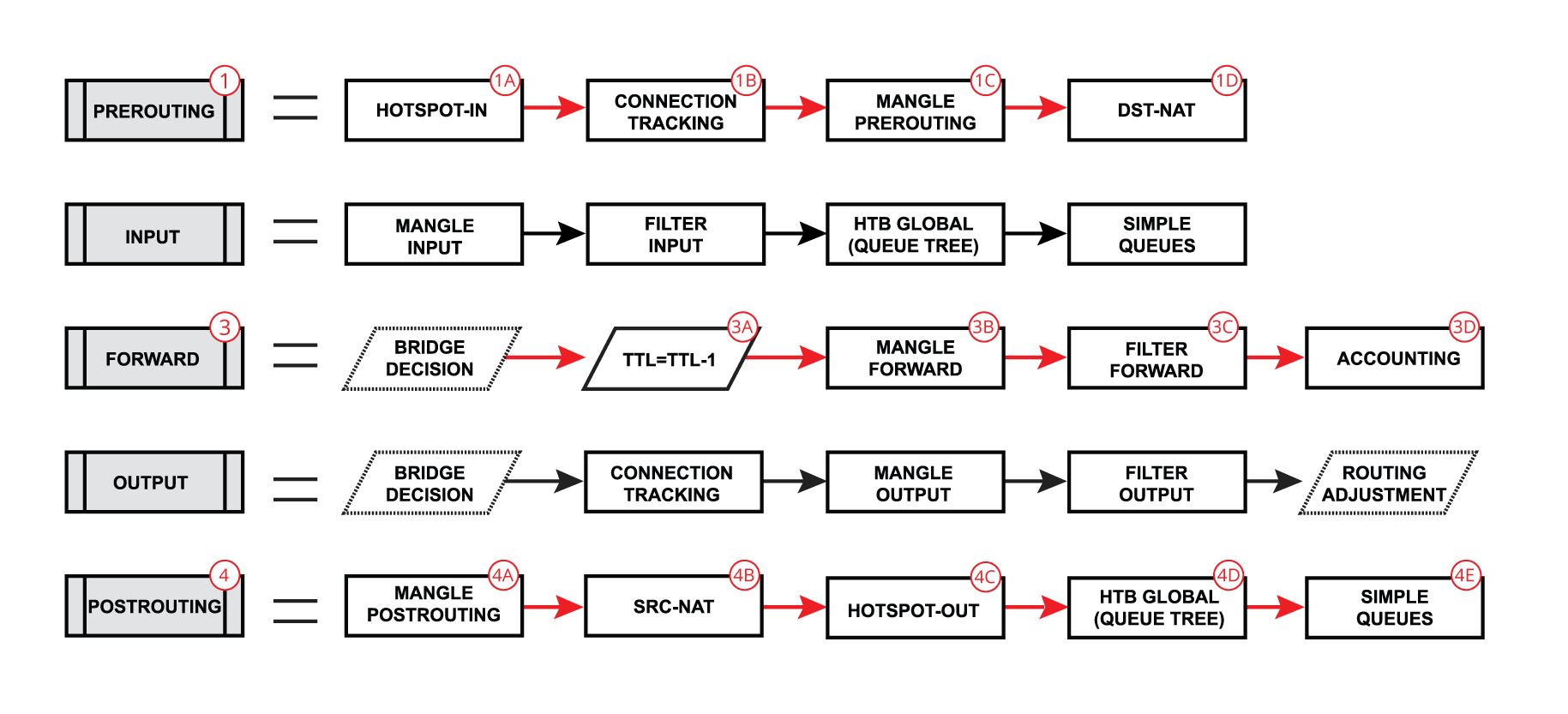

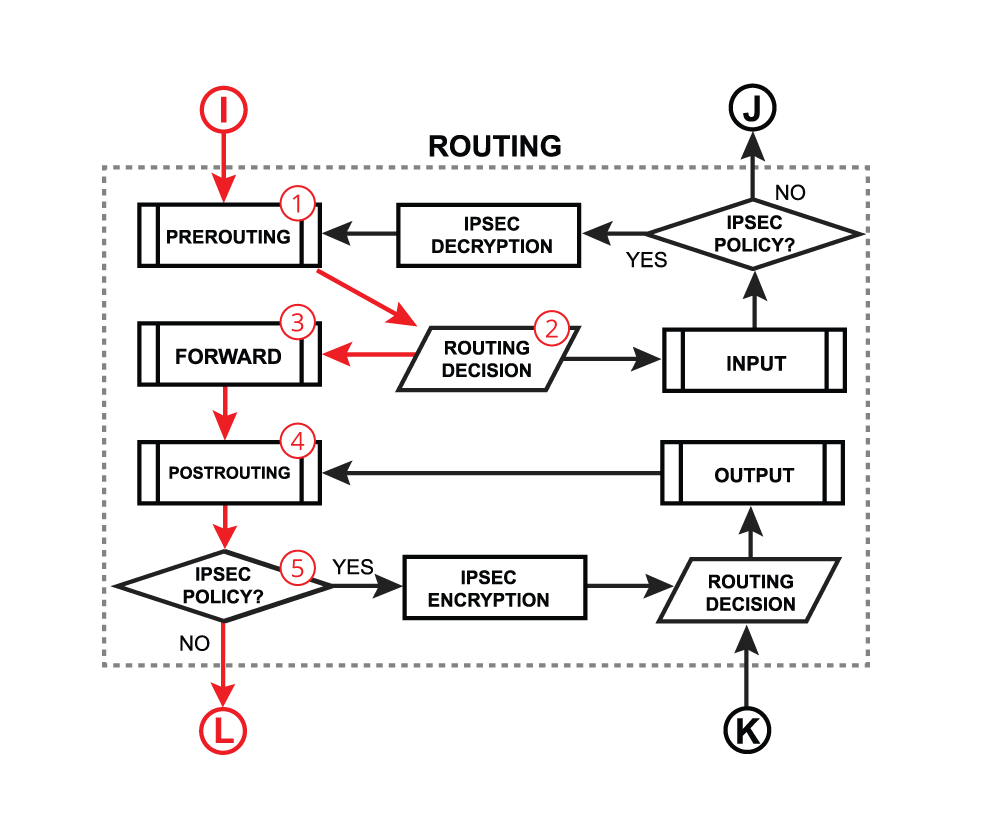

#### Forward

<figure><img src="https://556493038-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FxMLCiQqJJztvsDM2LNoE%2Fuploads%2Fgit-blob-8a81f5f4b652d4b3d11eda171552552de9ef6af8%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

<figure><img src="https://556493038-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FxMLCiQqJJztvsDM2LNoE%2Fuploads%2Fgit-blob-3c67cfaa997275a6b51cc271c49d2d06ddf1f012%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

* The packet enters prerouting processing:
  * check if there is a hotspot and modify the packet for hotspot use
  * process packet through RAW prerouting chain;
  * send the packet through connection tracking;
  * process packet through Mangle prerouting chain;
  * &#x20;process packet through NATs dst-nat chain;
* Run packet through routing table to make routing decision;
  * The packet enters the forward process;
  * check TTL value;
  * process packet through Mangle forward chain;
  * process packet through the Filter forward chain;
  * send the packet to accounting processes;
* A packet enters postrouting process;
  * process packet through Mangle postrouting chain;
  * process packet through NATs src-nat chain;
  * if there is a hotspot undo any modifications made in hotspot-in;
  * process packet through queue tree (HTB Global);
  * process packet through simple queues;
* Check if there is IPsec and then process through IPsec policies;

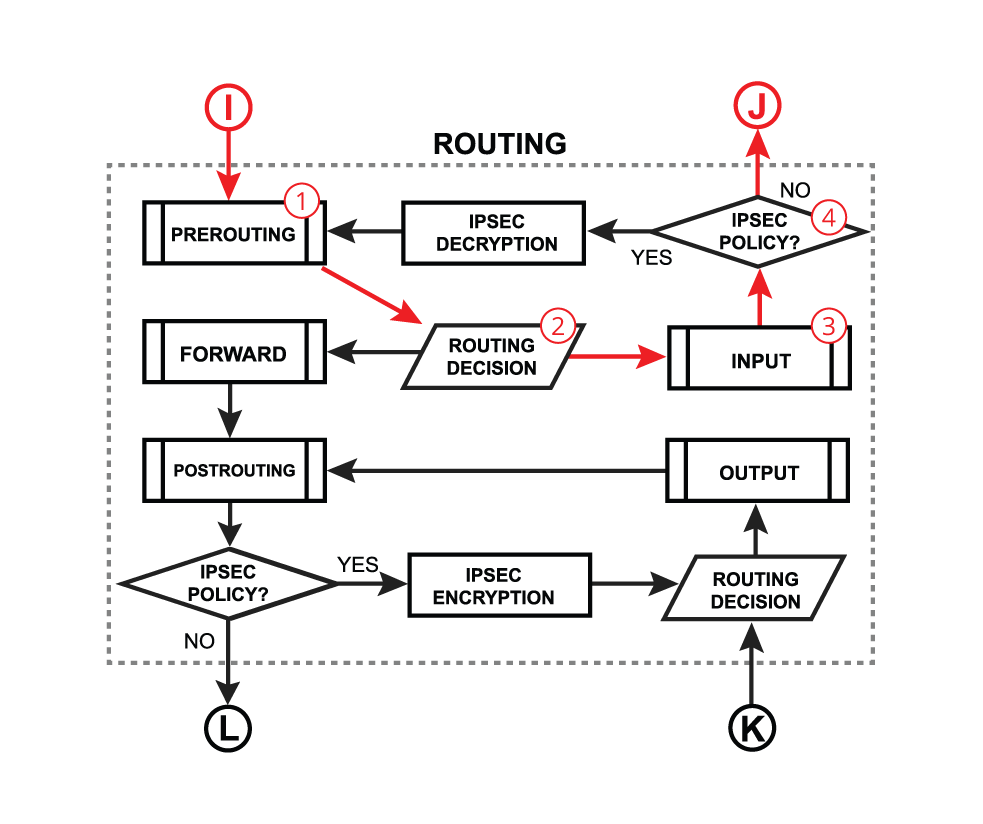

#### Input

<figure><img src="broken-reference" alt=""><figcaption></figcaption></figure>

<figure><img src="https://556493038-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FxMLCiQqJJztvsDM2LNoE%2Fuploads%2Fgit-blob-54d9fe6ec15ee76907961be2b0bd262953a9442b%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

* similar process happens when a packet's destination is a router
  * check if there is a hotspot and modify the packet for hotspot use
  * process packet through RAW prerouting chain
  * send a packet through connection tracking
  * process packet through Mangle prerouting chain
  * process packet through NATs dst-nat chain
* Run packet through routing table to make routing decision
* enters the input process
  * process packet through Mangle input chain
  * process packet through Filter input chain
  * process packet through queue tree (HTB Global)
  * &#x20;process packet through simple queues
* Check if there is IPsec and then process through IPsec policies.

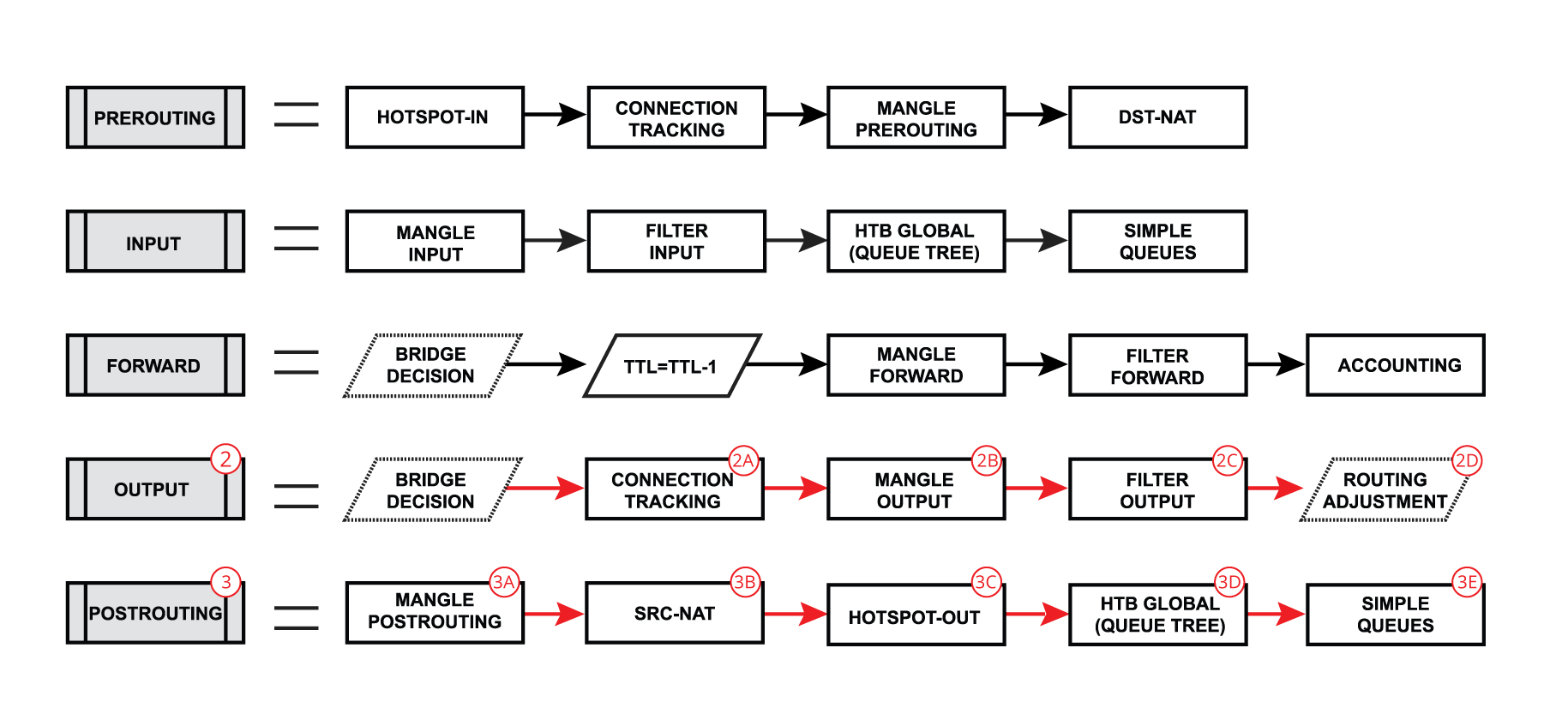

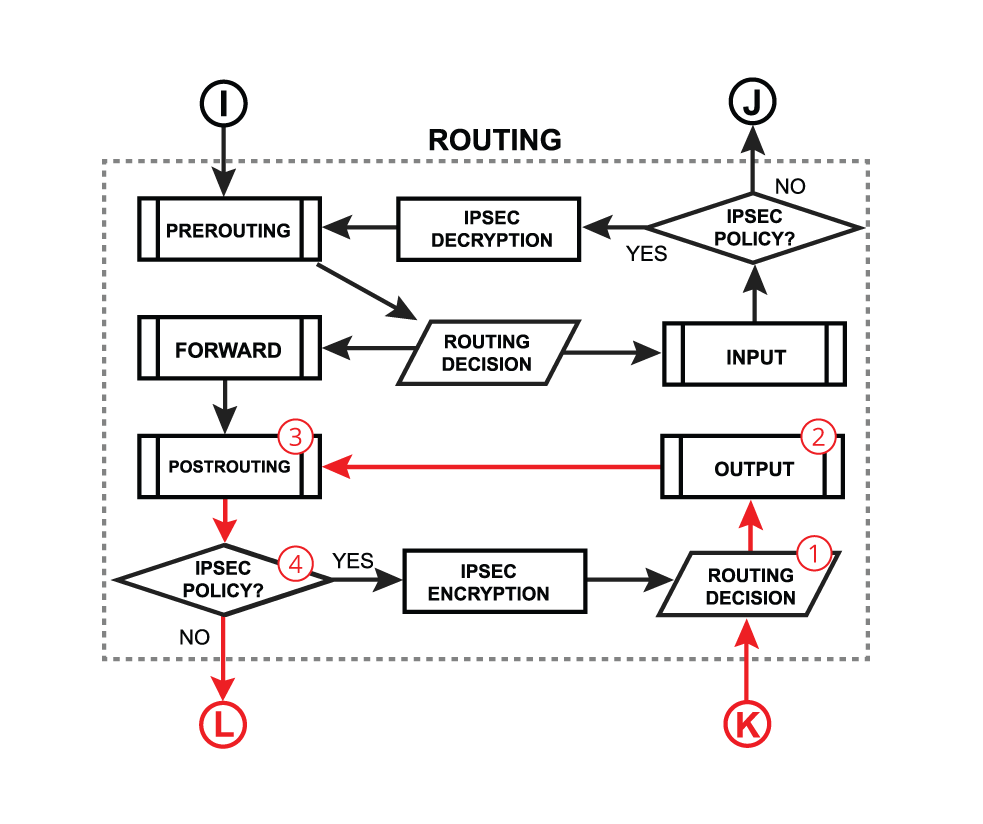

#### Output

<figure><img src="https://556493038-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FxMLCiQqJJztvsDM2LNoE%2Fuploads%2Fgit-blob-9116d05d114c085902df2afce155ec3cfd6115a5%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

<figure><img src="https://556493038-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FxMLCiQqJJztvsDM2LNoE%2Fuploads%2Fgit-blob-f65f807c970e0d93f23ea13a771fd2fdf1826173%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

* The packet is originated from the router itself
  * process packet through Mangle postrouting chain
  * process packet through NATs src-nat chain
  * if there is a hotspot undo any modifications made in hotspot-in
  * process packet through queue tree (HTB Global)
  * process packet through simple queues
* Check if there is IPsec and then process through IPsec policy

## References

* <https://help.mikrotik.com/docs/spaces/ROS/pages/328227/Packet+Flow+in+RouterOS>


---
