Building a Comprehensive AWS Config Lab: Tracking IAM Configuration Changes with SNS and S3

Introduction

Identity and Access Management (IAM) sits at the heart of AWS security. A single unnoticed change to a role, policy, or user could open the door to privilege escalation or unauthorised access.

This lab demonstrates a Proof-of-Concept (POC) setup using AWS Config to track IAM configuration changes in real-time, send notifications via SNS, and store detailed history in S3 for long-term analysis.

This implementation is simple enough for a lab environment yet practical enough to adapt directly to production.

Why This Lab Matters

AWS Config is a configuration change tracking service that can record the history of your AWS resources. By targeting IAM resources specifically, this setup focuses on high-impact security changes such as:

• Creation or deletion of IAM users

• Policy attachments or removals

• Trust policy modifications

• Privilege escalations

With SNS for real-time alerts and S3 for historical storage, you get both immediate visibility and an audit-ready trail of every change.

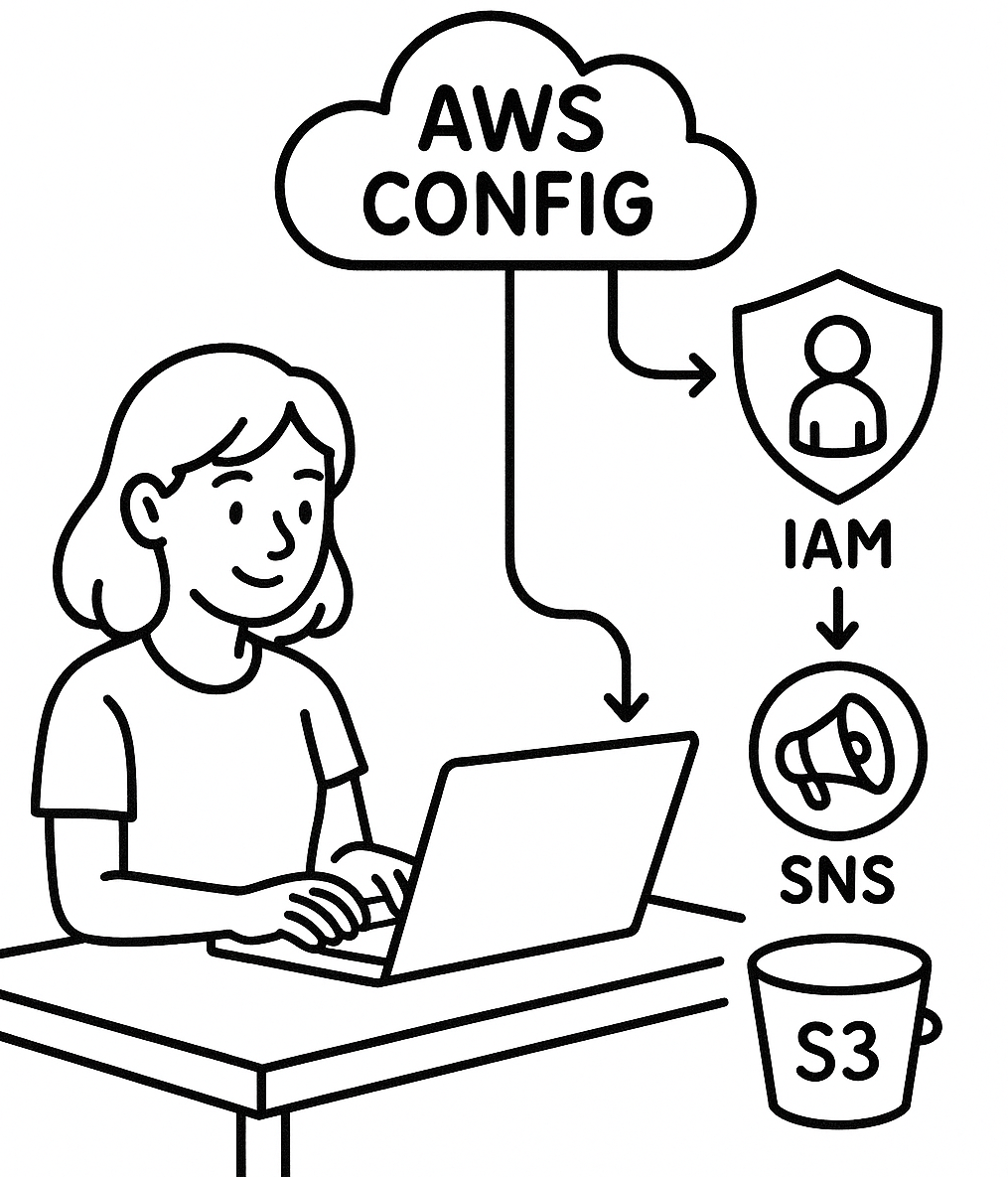

Lab Architecture

Flow Overview:

1. AWS Config records IAM resource changes.

2. SNS Topic receives change notifications.

3. S3 Bucket stores configuration history and snapshots.

Prerequisites

Before you start, make sure you have:

• An AWS account with permissions to:

  • Create and configure AWS Config

  • Create IAM roles, SNS topics, and S3 buckets

• Basic understanding of IAM roles and policies

Extra Considerations:

• Regional Awareness: IAM is global service, enable AWS Config’s global resource recording in only one region to avoid duplicate charges.

• Cost Management: AWS Config charges per configuration item. Record selectively.

• Permissions: AWS Config’s service role must have permissions for S3 and SNS

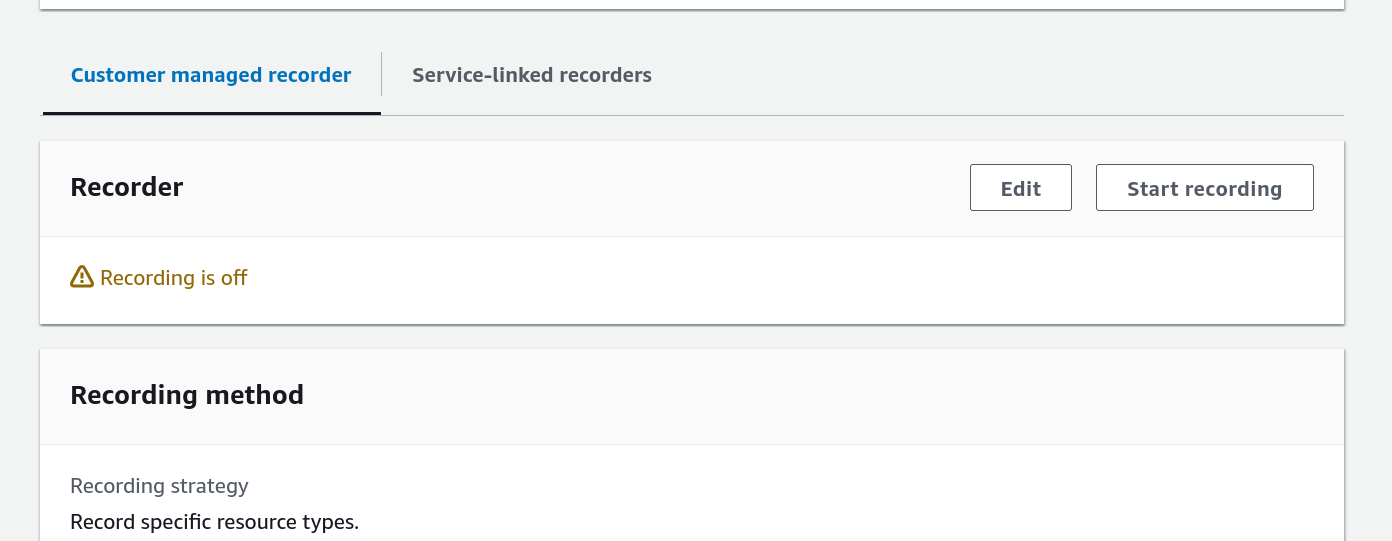

AWS Config Setup

Let AWS Config Create Storage and Notifications

For this lab, instead of manually creating the S3 bucket and SNS topic, we used AWS Config’s built-in option to automatically provision them during initial setup.

When you choose this option:

• AWS Config creates an S3 bucket with a unique name (e.g., awsconfig-bucket-1234567890-region).

  •
• An SNS topic is created and automatically linked to AWS Config.

  •
• All necessary permissions are applied by default.

Why this is useful for a POC:

• Zero additional setup - you can go from nothing to a working lab in minutes.

• AWS handles IAM policies for these resources automatically.

• Great for testing AWS Config capabilities without worrying about infrastructure.

Things to note for production:

• Auto-created buckets have generic names and no lifecycle policies by default - storage can grow quickly.

• SNS topics will need explicit subscription management to send notifications where you need them.

• You might want to enable S3 versioning and custom bucket policies for compliance.
